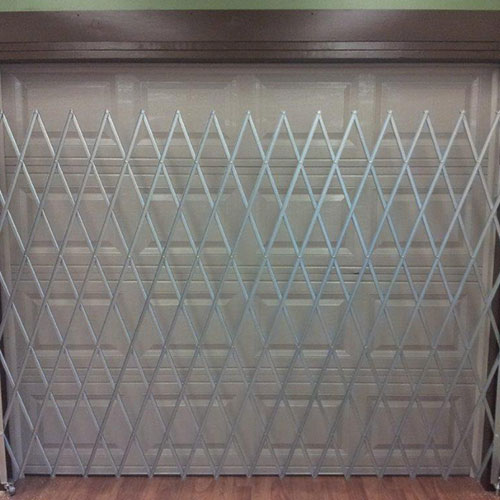

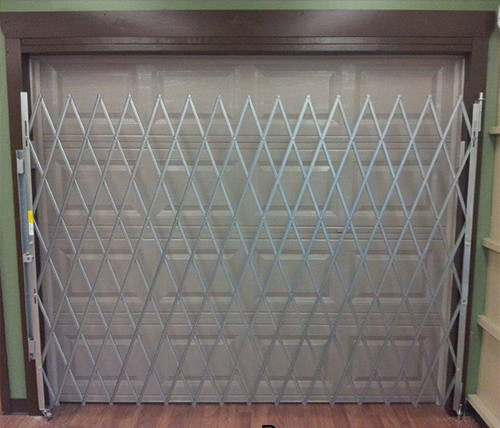

Single Fixed Accordion Gates

Scissor Gates or Accordion Gates

Features:

  • For standard openings, patio doors, garages, industrial and commercial use.
  • One-piece scissor gates fit openings 3′ to 10′ wide and up to 8′ in height.
  • In Stock, Ready to Ship

Specifications:

  • Galvanized Steel.
  • Heavy duty steel U-channels riveted back to back using aircraft quality rivets.
  • Heavy duty vertical 1 1⁄2″ x 1 1⁄2″ angles, and casters.
  • Galvanized finish.
  • Single scissor gates lock on the right side unless specified.

Note: Scissor gates gain 6″ in height when collapsed (folded). The sizes in the chart below reflect height before extension.
Note: We suggest you allow at least 6-8″ of room above the gate to ensure it will fit in their opening.

Blockader® Folding Gates secure receiving doors, lift-up doors, hallways, and entranceways while allowing light and air to circulate through opening. Sturdy vertical gate rails mount and pivot gate completely out of opening. All Scissorgates larger then 6′ are equipped with self-securing center drop pin. Comes with brackets, bearing washers and casters. Screws and locks not included. Gates have universal mounting on face or in casing.

Talk To Us Today!

CALL 1-866-946-3512

or

Request a Quote
Single Fixed Gate - Accordion Gates
When Fully Extended All Gates Lose Approximately 6 Inches In Height

Download the 2015 Blockader Gates Product Catalog

DOWNLOAD PRODUCT CATALOG!

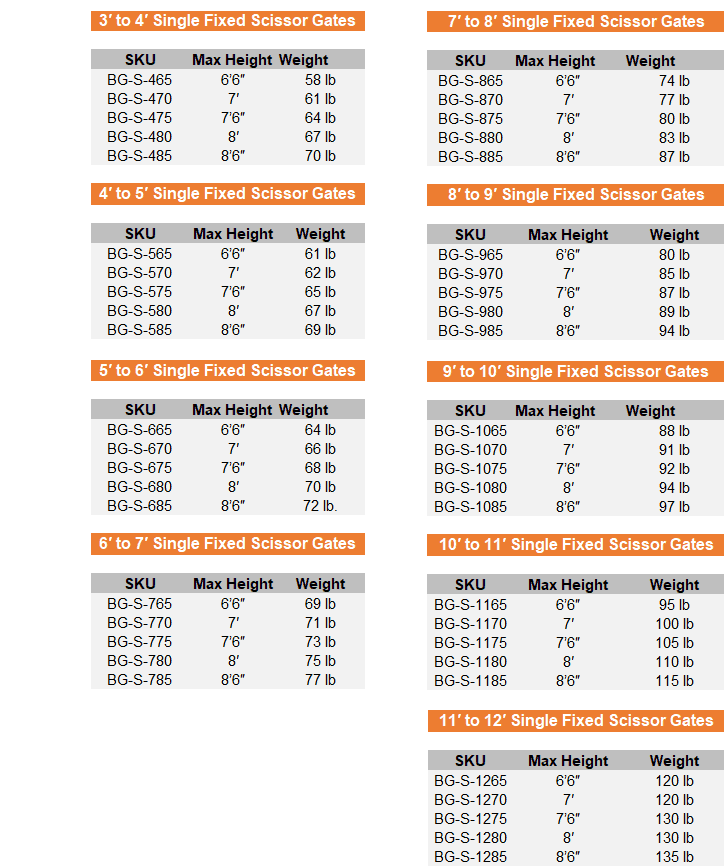

Single Fixed Gates

Installation Instructions
Part Number
Max Height
Weight
Price
to be Provided on Quote
3′ to 4′ Single Fixed Scissor Gates
BG-S465 * 6’6″ 58 lb
BG-S470 7′ 61 lb
BG-S475 7’6″ 64 lb
BG-S480 8′ 67 lb
BG-S485 8’6″ 70 lb
4′ to 5′ Single Fixed Scissor Gates
BG-S565 * 6’6″ 61 lb
BG-S570 7′ 62 lb
BG-S575 7’6″ 65 lb
BG-S580 8′ 67 lb
BG-S585 8’6″ 69 lb
5′ to 6′ Single Fixed Scissor Gates
BG-S665 * 6’6″ 64 lb
BG-S670 7′ 66 lb
BG-S675 7’6″ 68 lb
BG-S680 8′ 70 lb
BG-S685 8’6″ 72 lb.
6′ to 7′ Single Fixed Scissor Gates
Gates this size and above will have a CENTER DROP PIN
BG-S765 * 6’6″ 69 lb
BG-S770 7′ 71 lb
BG-S775 7’6″ 73 lb
BG-S780 8′ 75 lb
BG-S785 8’6″ 77 lb
7′ to 8′ Single Fixed Scissor Gates
BG-S865 * 6’6″ 74 lb
BG-S870 7′ 77 lb
BG-S875 7’6″ 80 lb
BG-S880 8′ 83 lb
BG-S885 8’6″ 87 lb
Part Number
Max Height
Weight
Price
to be Provided on Quote
8′ to 9′ Single Fixed Scissor Gates
BG-S965 * 6’6″ 80 lb
BG-S970 7′ 85 lb
BG-S975 7’6″ 87 lb
BG-S980 8′ 89 lb
BG-S985 8’6″ 94 lb
9′ to 10′ Single Fixed Scissor Gates
BG-S1065 *
6’6″ 88 lb
BG-S1070
7′ 91 lb
BG-S1075
7’6″ 92 lb
BG-S1080
8′ 94 lb
BG-S1085
8’6″ 97 lb
10′ to 11′ Single Fixed Scissor Gates
Gates this size and above will have an OUTRIGGER WITH AXLES
BG-S1165 * 6’6″ 95 lb
BG-S1170 7′ 100 lb
BG-S1175 7’6″ 105 lb
BG-S1180 8′ 110 lb
BG-S1185 8’6″ 115 lb
11′ to 12′ Single Fixed Scissor Gates
BG-S1265 *
6’6″ 120 lb
BG-S1270
7′ 125 lb
BG-S1275
7’6″ 130 lb
BG-S1280
8′ 135 lb
BG-S1285
8’6″ 140 lb
Single Fixed Gate Accessories
BG-SHAN
Single Handle – Easy opening grasp

BG-STR Strap – Locks gate in a retracted position
